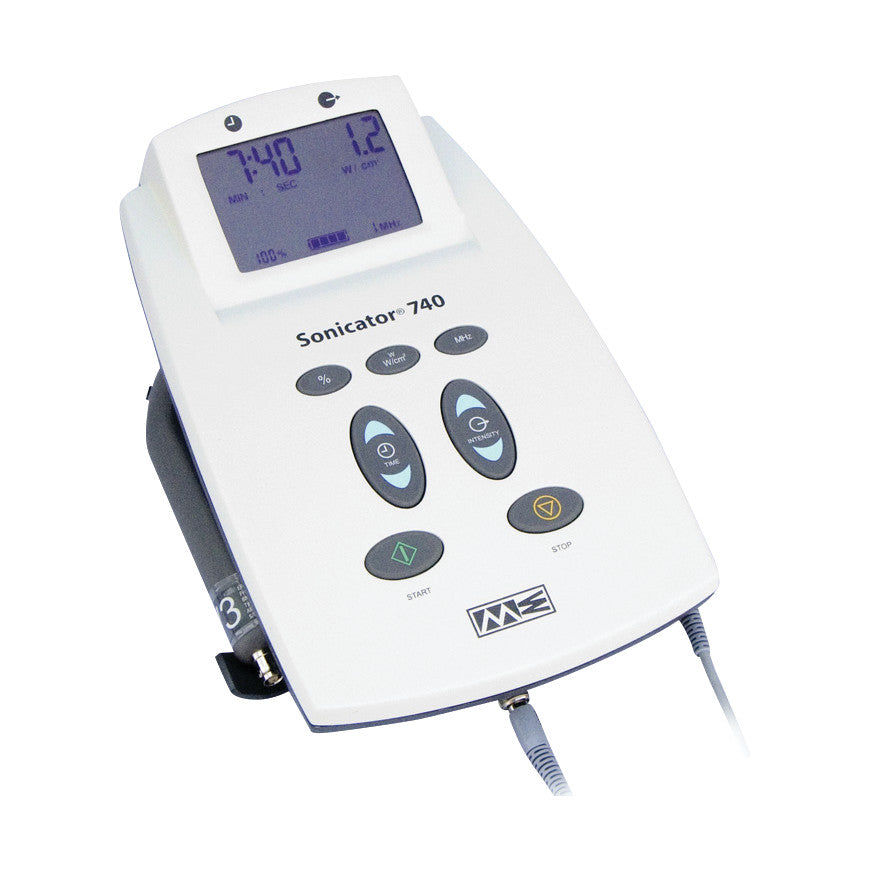

Mettler Sonicator^® 740 Ultrasound

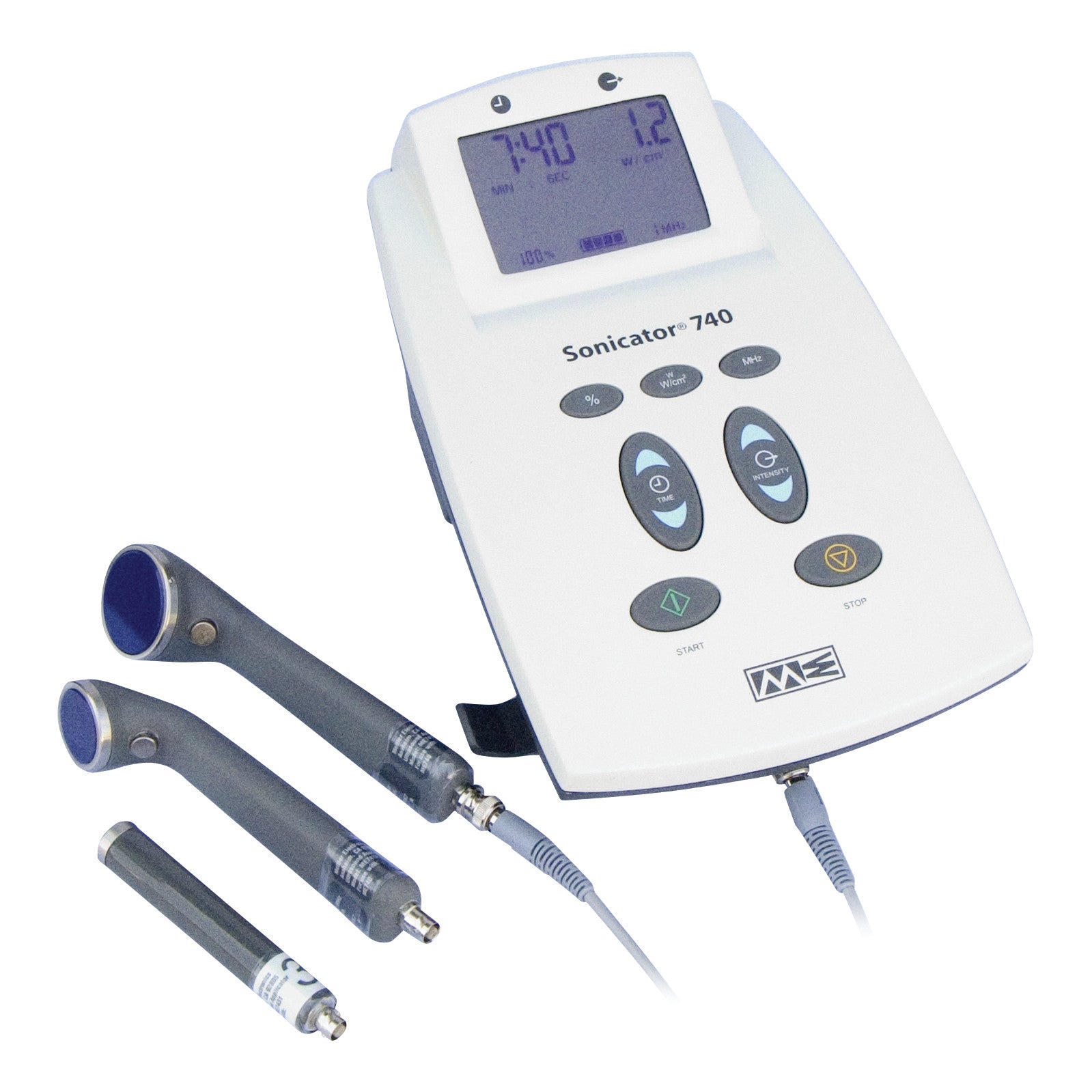

Mettler Sonicator® 740 Ultrasound is a light-weight, portable ultrasound unit that features a universal applicator cable to make changing applicators quick and easy. Large soft-touch controls let you set-up treatments quickly and easily and the backlit display shows all treatment parameters and conditions. Available in two styles: One-Applicator (with 5cm2 applicator) or Three-Applicator (with 1cm2, 5cm2, and 10cm2 applicators). 5cm2 applicator is dual frequency.

9-1/2"W x 7"H x 13-1/2"D • Max. beam nonuniformity ratio 6:1 • Continuous or pulsed modes • 10, 20, and 50% duty cycle • Pulse repetition rate: 100 Hz ± 20% • Pulse duration: 1, 2, or 5 sec. • Max. treatment time: 30 min. • 3.75 lbs. without battery, 4.5 lbs. with battery
1cm2 Applicator: 3.3 MHz • 5cm2 Applicator: 1 MHz/3.2 MHz • 10cm2 Applicator: 1MHz
