  • Wolf Trimline Plus Illuminator, a wall-mounted X-ray film viewer with a rectangular design and a clean white finish.

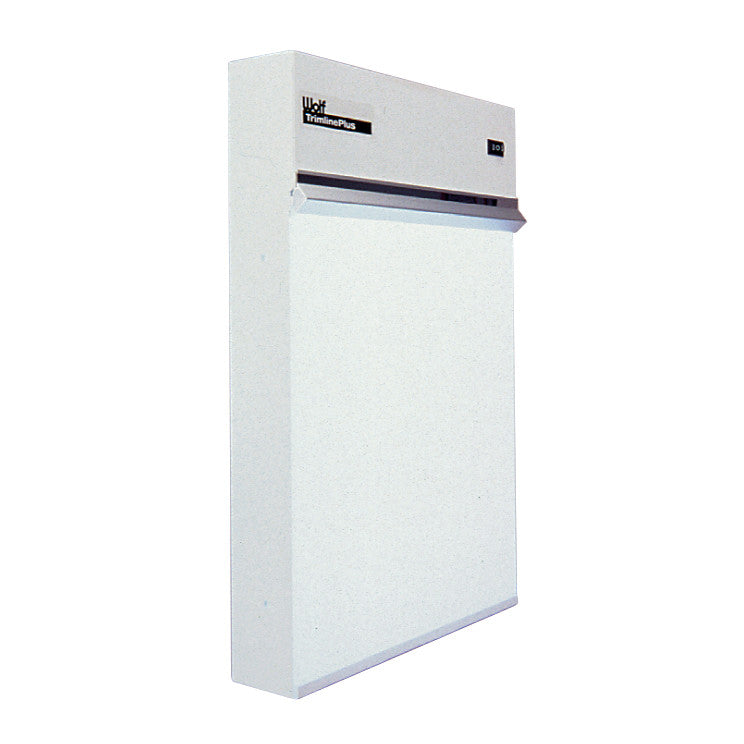

  • The Wolf Trimline Plus Illuminator is a white, wall-mounted X-ray viewer with a sleek design and control button on the top right.
  • Wolf Trimline Plus Illuminator, a rectangular, wall-mounted medical device for viewing X-ray films, with a slim design.

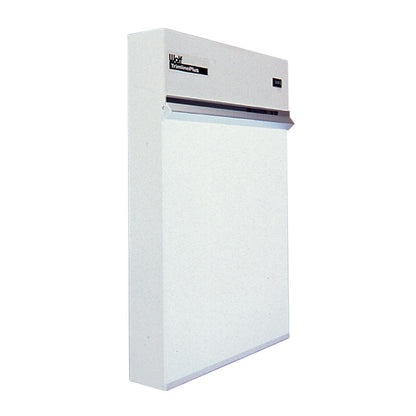

  • A Wolf Trimline Plus Illuminator, a wall-mounted light box with a white rectangular design and a light panel for viewing.
1
  • Wolf's top-of-the-line illuminator system
  • Offers 4 lamps per viewing area with 5,150 Candela per square meter
  • Film-activated auto on/off switch and roller grip film retainer
  • Available with 1-, 2-, 3-, or 4-bank horizontal configuration

Wolf™ Trimline Plus Illuminator

Wolf™ Trimline Plus Illuminator

Product Features
$846.18 USD
$846.18 USD
Sale Sold out
SKU #

2970011745

1/Each

Ships in 5 days

View full details
  • Wolf's top-of-the-line illuminator system
  • Offers 4 lamps per viewing area with 5,150 Candela per square meter
  • Film-activated auto on/off switch and roller grip film retainer
  • Available with 1-, 2-, 3-, or 4-bank horizontal configuration

Also in this Collection

Product Highlights

Brand: Wolf X-Ray Corporation

Return Policy

TAA Compliant files/TAA_Compliant_53dbfed6-39c6-4242-851c-37f807094a69.svg

CE Marked Product

files/CE_Mark.svg
prop65-alert-warning-icon WARNING:

Product Description

Wolf™ Trimline Plus Illuminator offers four lamps per each 14"W x 17"H viewing area, providing 5,150 Candela per square meter. It comes standard with baked-on white polyester powder finish, film-activated auto switches, roller grip film retainer, and 8'L power cord with hospital-grade plug. Meets or exceeds the American College of Radiology recommended guidelines on diagnostic illumination, conforms to UL 60601-1, and is certified to CAN-CSA C22.2 no. 601.1. Available with 1, 2, 3, or 4 banks in a horizontal configuration.


1 Bank: 14"W x 22"H x 3-1/4"D overall • 14"W x 17"H viewing area • 16 lbs.
2 Banks: 28"W x 22"H x 3-1/4"D overall • 28"W x 17"H viewing area • 29 lbs.
3 Banks: 42"W x 22"H x 3-1/4"D overall • 42"W x 17"H viewing area • 48 lbs.
4 Banks: 56"W x 22"H x 3-1/4"D overall • 56"W x 17"H viewing area • 70 lbs.
