  • A sheet of brown AliMed AliPlast 10 foam is displayed against a white background.

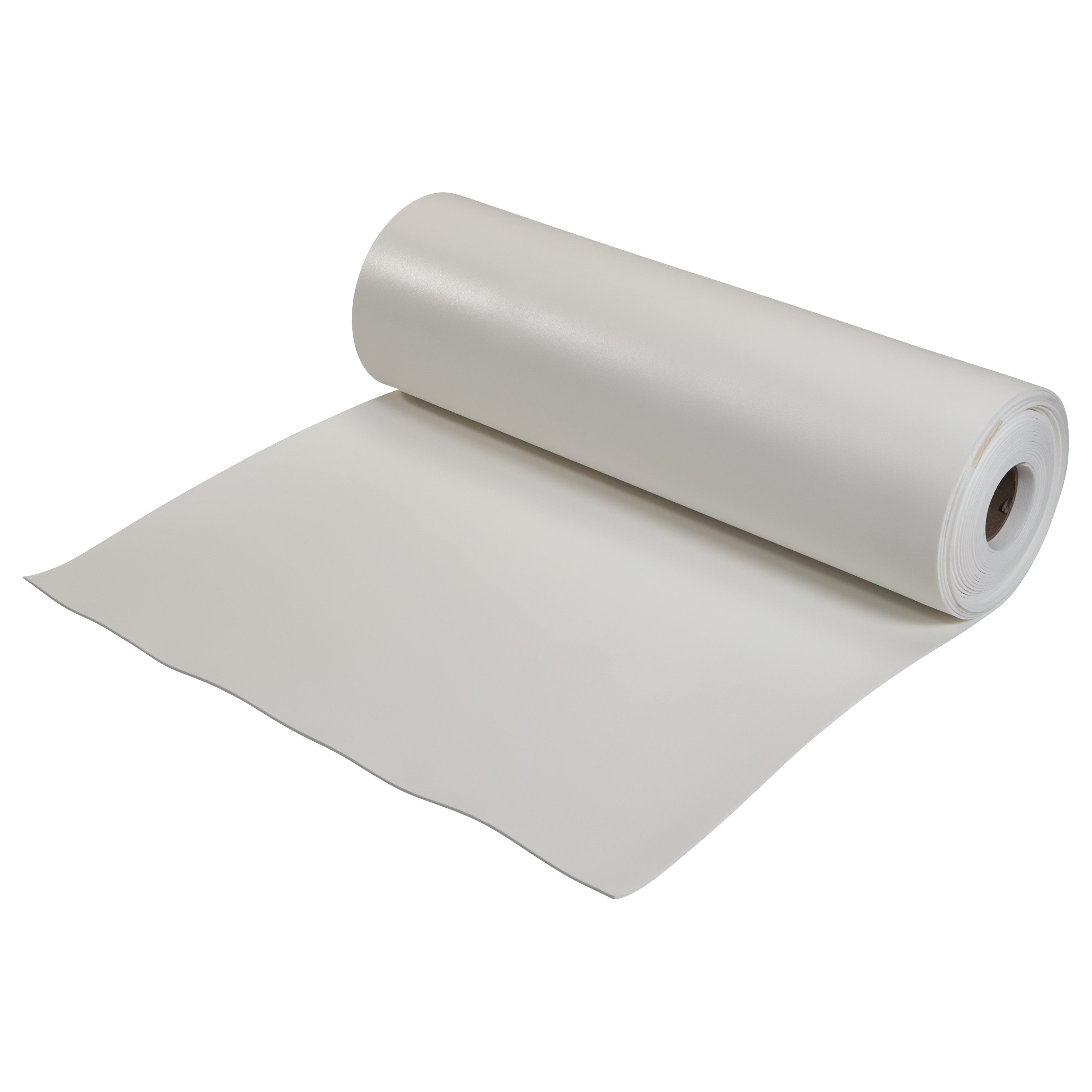

  • A roll of AliMed AliPlast 10, a white, dense foam material, partially unrolled with even thickness and smooth surface.
  • A sheet of AliMed AliPlast foam, shown in brown. The material is flat and slightly elevated, against a white background.
  • A sheet of AliMed AliPlast foam measuring 10x10 inches, shown from an angled view on a white background.
  • A roll of brown AliMed AliPlast 10 foam is partially unrolled, displaying its smooth and flexible texture.
  • A sheet of AliMed AliPlast 10, a smooth, gray flexible material with a slightly angled view, resembling foam or plastic.
  • Two sheets of AliMed AliPlast foam feature gray and brown colors, lying flat with a slight curl at the edges.

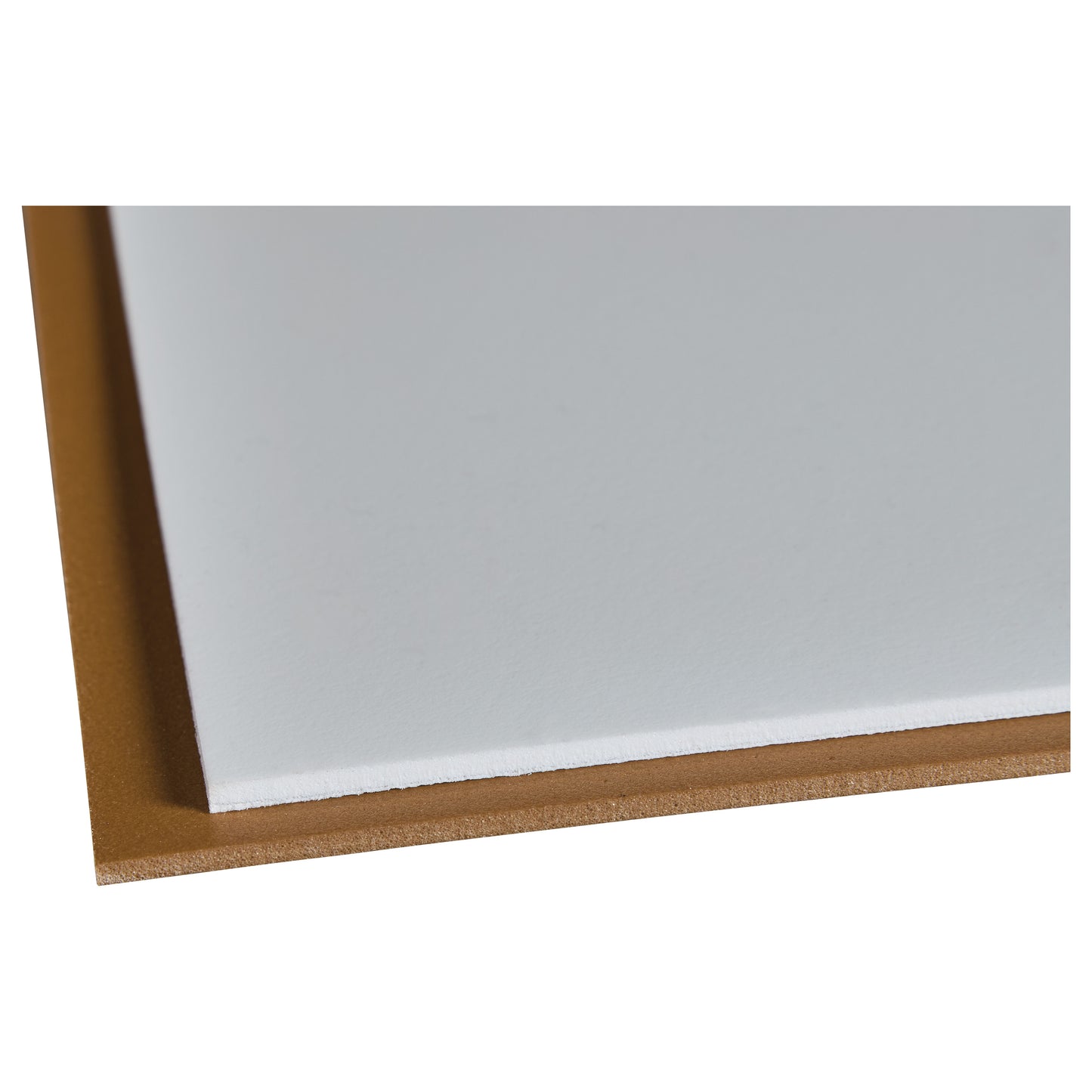

  • Close-up of AliMed AliPlast 10, a white foam-like sheet on a brown backing, used for medical or healthcare purposes.
1
  • Use for semirigid foot orthotics and splint shells
  • Resilient
  • Firm-grade, 60 durometer firmness
  • Thermoplastic closed-cell foam won't absorb perspiration, bacteria, or odors
  • 1/8"H available by the sheet, case, or roll

AliMed® AliPlast™ 12

AliMed® AliPlast™ 12

Product Width x Product Length x Product Height
Color: Buff
Quantity in Package
$39.50 USD
$39.50 USD
Sale Sold out
SKU #

2970001675

1/Sheet

In stock
View full details
  • Use for semirigid foot orthotics and splint shells
  • Resilient
  • Firm-grade, 60 durometer firmness
  • Thermoplastic closed-cell foam won't absorb perspiration, bacteria, or odors
  • 1/8"H available by the sheet, case, or roll

Also in this Collection

Product Highlights

Brand: AliMed

Return Policy

TAA Compliant files/TAA_Compliant_53dbfed6-39c6-4242-851c-37f807094a69.svg

prop65-alert-warning-icon WARNING:

Product Description

AliMed® AliPlast™ 12 is a firm-grade, resilient thermoplastic foam with a 60 durometer (Shore A) firmness level. Effective for constructing semirigid foot orthotics and splint shells. Lightweight cross-linked, closed-cell polyethylene foam is heat-moldable with an impervious surface that won't absorb perspiration, bacteria, or odors. Smooth skin is tough, durable, and easy to clean. 1/8"H. Available in Buff or White sold by the sheet, case of sheets, or roll.


Sheet: 25"W x 30"L x 1/8"H in Buff or 24"W x 29-1/2"L x 1/8"H in White
Roll: 30"W x 40'L x 1/8"H in Buff or White


Physical Properties of AliPlast 12: Oven Temperature (°F): 250 to 325 • Density (lbs./cu. ft.): 12 • Tensile Strength (PSI): 294; 20 in./min. (PSI): 226 • 25% Compression: N/A • 50% Compression: 75-100 • 75% Compression: N/A • Permanent Set (%), 50% compression for 24 hrs./24-hr. recovery: 15 max • Service Temperature (°F): -110 to +200


About AliMed® AliPlast™: When heated, AliPlast softens in minutes and can mold and form around any shape. When cool, it regains its original cushioning and rigidity. Softer varieties can be molded directly to the body while firmer styles are better molded first to a plaster cast to avoid danger of burns. When surfaces of two heated pieces are brought together, a permanent bond will result. AliPlast can be vacuum-formed and is auto-adhesive. Polyolefin base creates a uniquely durable bond with polyethylene or polypropylene and can be used to adhere these difficult-to-bond materials together, saving considerable time and effort when forming orthotics. AliPlast shrinks along the grain when heated, and its thickness increases. To compensate for shrinkage, stretch the material during molding. Chemically inert, hypoallergenic, and safe for virtually any orthotic or prosthetic application.
