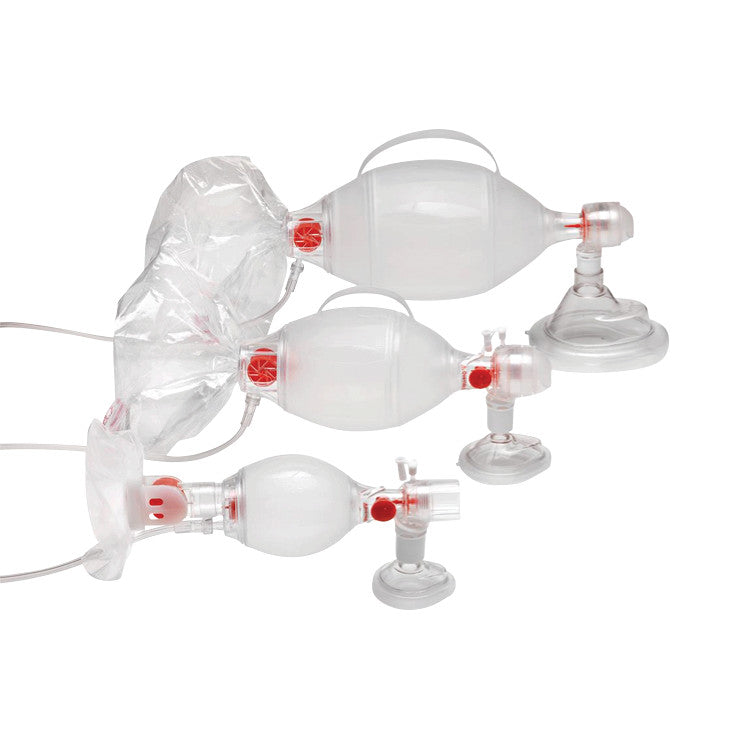

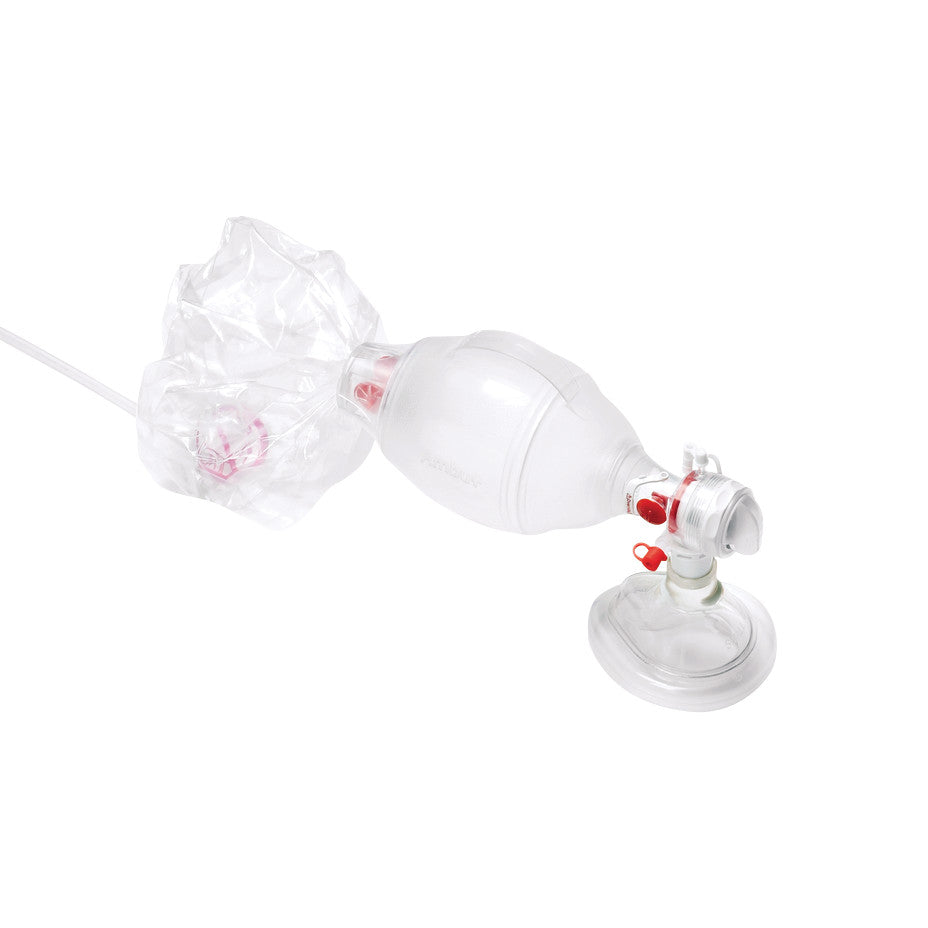

Single-Patient-Use Ambu-Bags/Manual Resuscitator

Single-Patient-Use Ambu-Bags/Manual Resuscitator allows for a visual check of operation and assures uniform compression rate. Meet or exceed BS, ISO, and ASTM specifications and eliminate the possibility of exposure to contagions due to inadequate sterilization. Utility and functionality are assured over the full range of clinical applications. Textured compression bag with unique support strap (on Adult and Pediatric versions) provides a sure grip and uniform tidal volumes. Disc-type patient valve features extremely low valve resistance with no measurable leak forward or backward. Lowest inspiratory resistance minimizes the work of breathing while direct PEEP valve connection minimizes the potential for leakage. Available in Adult and Pediatric sizes. 6 per case.

Patient connection width: 22 mm (outer), 15 mm (inner) • Max. dead space: 6 ml • PEEP connector: 30 mm • MR-conditional to 3Tesla
Adult: Resuscitator volume: 1,475 ml • Stroke volume: 600 ml (one hand), 1,000 ml (two hands) • Range of application: 66+ lbs.
Pediatric: Resuscitator volume: 635 ml • Stroke volume: 450 ml • Range of application: 0-66 lbs.
