LifeDop^™ Vascular Testing System

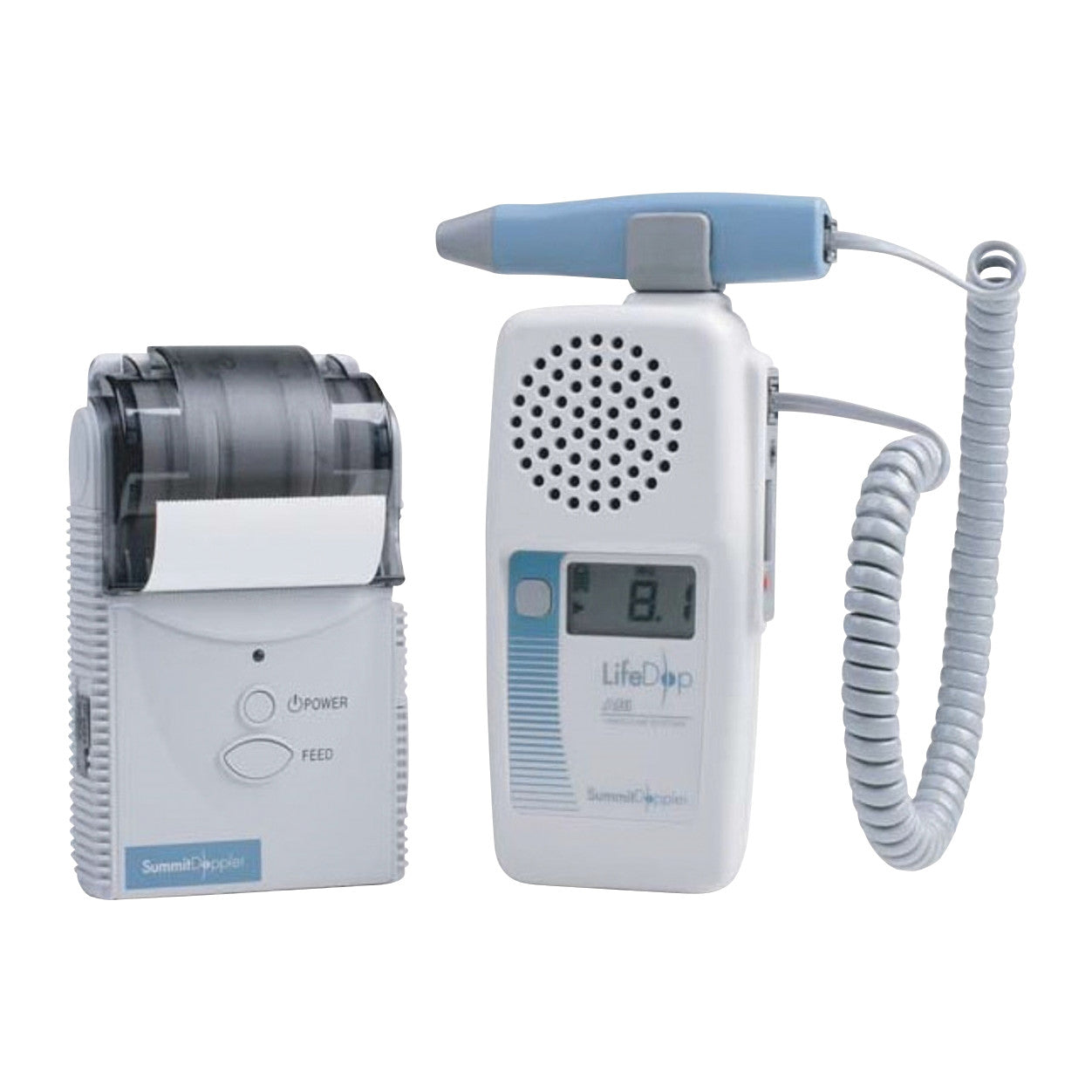

LifeDop™ Vascular Testing System is an efficient, economical, and portable solution for performing ankle-brachial index (ABI) exams. Highly accurate, quickly obtaining the ABI to assist with the detection of peripheral arterial disease (PAD). Quick calculation chart determines whether results are normal. Features automatic waveform scaling to avoid clipped waveforms. Includes bidirectional handheld Doppler with automatic frequency calibration and waveform memory, 8-MHz bidirectional vascular probe with optimal beam shape, portable, rechargeable printer, 50 ABI reimbursement forms, calculation chart, and ABI instructional video.

LifeDop System: 2-3/4"W x 5-3/4"L x 1-3/8"D • 0.7 lb. • Power Source: 3 AA alkaline batteries (included)
Printer: 3-5/16"W x 5-5/16"L x 1-5/8"D • 0.6 lb. • Power Source: 3.7V lithium rechargeable battery (included) • Paper Type/Size (Max): Thermal, 58 mm wide, 33 mm diameter • Resolution: 48 mm wide, 8 dots/mm, 384 dots/line • Printout Length: 38 mm total with header
