Wolf™ TrimlinePlus™

Wolf™ TrimlinePlus™

  • Our top-of-the-line illuminator system
  • Provides 3,426 nits of even, bright light
  • Film-activated auto on/off switches
Learn More >
Product Name   Your Price Availability
Illuminator, 1 Bank, 14" x 22", each
Item # 920619
$399.75
Ships in 5 Days
Quantity:
Illuminator, 2 Banks, 28" x 22", each
Item # 920621
$756.00
Ships in 5 Days
Quantity:
Illuminator, 3 Banks, 42" x 22", each
Item # 920622
$1,170.00
Ships in 10 Days
Quantity:
Illuminator, 4 Banks, 56" x 22", each
Item # 920623
$1,561.75
Ships in 10 Days
Quantity:
Illuminator, 5 Banks, 70" x 22", each
Item # 920624
$1,776.75
Ships in 15 Days
Quantity:
Illuminator, 6 Banks, 84" x 22", each
Item # 920625
$2,130.00
Ships in 15 Days
Quantity:
Illuminator, 1 over1, 14" x 44", each
Item # 920626
$783.00
Ships in 15 Days
Quantity:
Illuminator, 2 over 2, 28" x 44", each
Item # 920627
$1,561.75
Ships in 15 Days
Quantity:
Illuminator, 3 over 3, 42" x 44", each
Item # 920628
$2,399.75
Ships in 15 Days
Quantity:
Illuminator, 4 over 4, 56" x 44", each
Item # 920629
$2,824.00
Ships in 20 Days
Quantity:
Illuminator, 5 over 5, 70" x 44", each
Item # 920631
$3,526.75
Ships in 20 Days
Quantity:
Illuminator, 6 over 6, 84" x 44", each
Item # 920632
$4,254.75
Ships in 20 Days
Quantity:

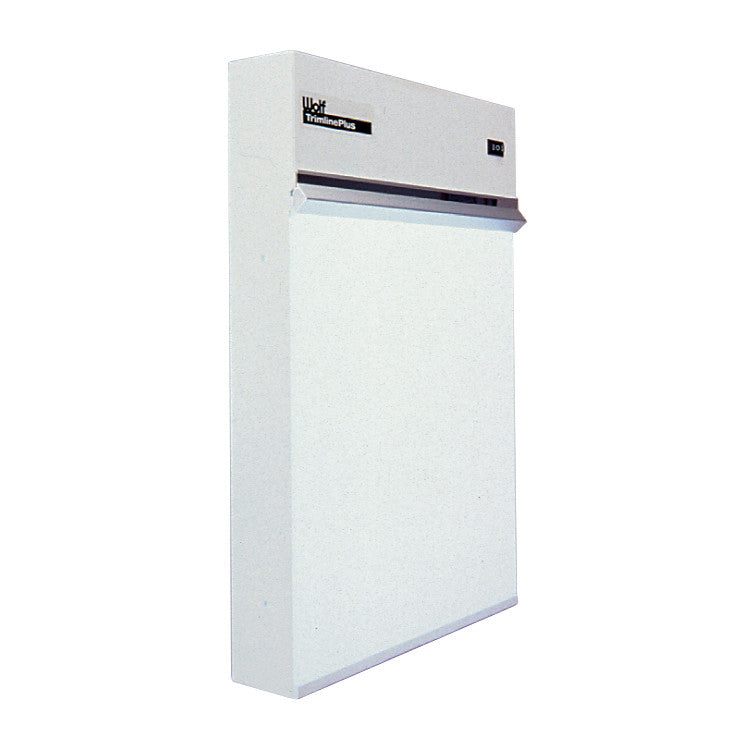

Wolf™ TrimlinePlus™ is our top-of-the-line illuminator system. Provides 3,426 nits of even, bright light.

  • Four 15-watt lamps per 14" x 17" viewing area
  • Film-activated auto on/off switches

Specifications:

  • Switch: Rocker style, 3-position, On/Off automatic
  • Switch cluster and master control switch on 4/4 and up models
  • Location of switches: top right for singles and bank units, lower right for bottom units
  • Electrical supply: 120V, 60Hz, 1.10 AMP for each 14" x 17" viewing area
  • Ballast: 4 lamp, class P thermally protected 1.10 AMP, 120V, 60Hz, UL and CSA listed
  • Viewing panel: 1-1/8" thick translucent white shatterproof plexiglas
  • Finish: baked-on white urethane-polyester power coating.

Requires a truck height dock. If no dock available, a lift gate truck is needed ($125 additional charge). Customer may also request inside delivery ($75 additional charge). Please add a note to your order if you need a lift gate or inside delivery and the additional charge will be manually added when your order is put on the computer. No overnight shipping is available. This item can only be shipped Ground Freight.
