Power Imaging Table with Stirrups Pneumatic backrest, adjustable from either side and raises up to 80° from flat position. Drop section, adjustable from either side and raises up to 30° from flat position. All welded steel base, top frame and scissors lift. Hands-free foot control. 10" x 10" Built-in hinged window drop. Metal slide bar supports window drop. Retractable, 2-position, adjustable stirrups. Optional locking casters. 450 lbs. load capacity under normal use. Choice of table pad colors: Royal Blue or Black.
| |
Length |
Width |
Height Range |
| Overall |
76" |
27" |
18" - 35" |
| Drop |
13" |
|
|
| Backrest |
38" |
27" |
|
Optional Accessories:

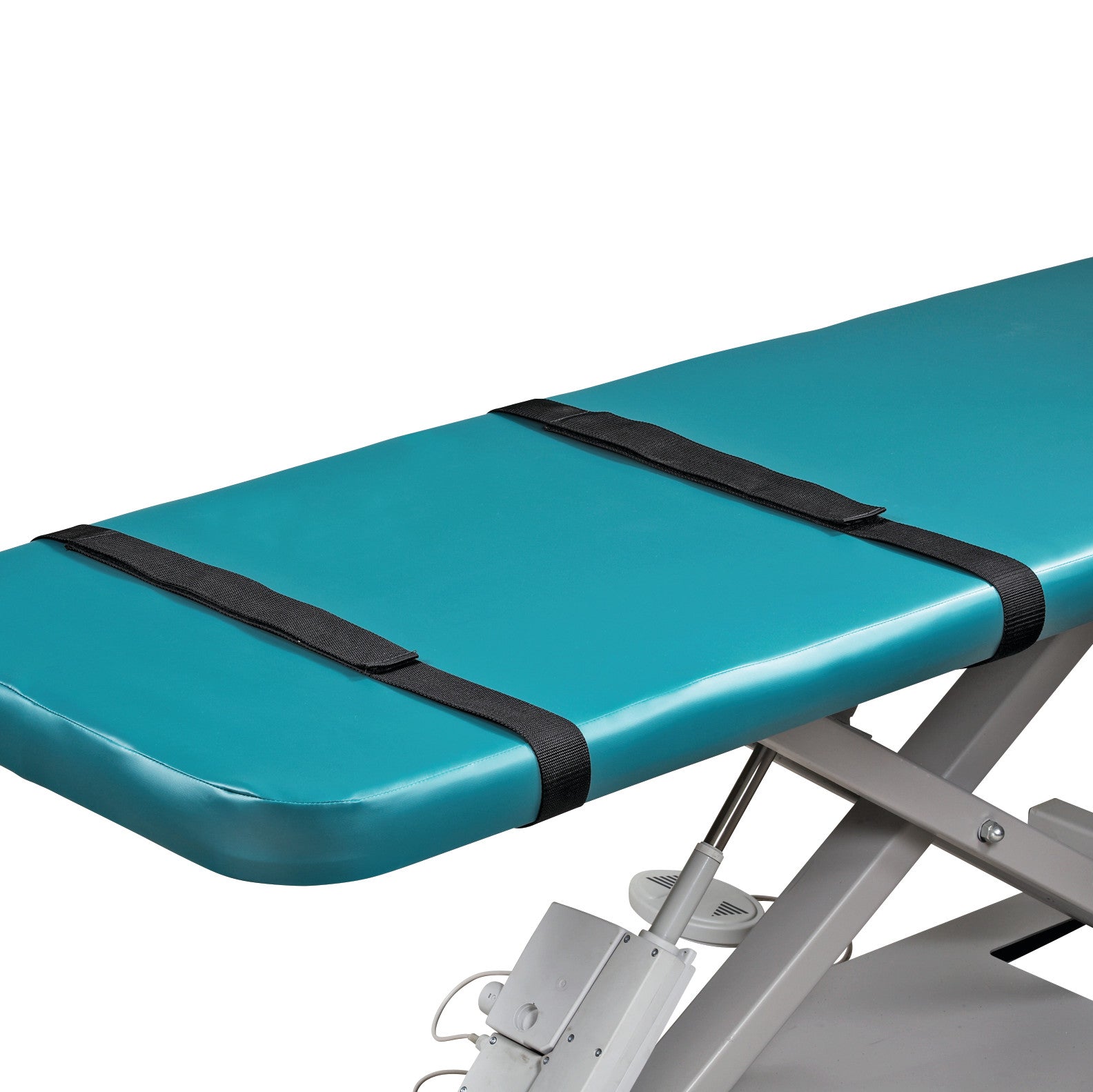

Safety Strap: 2"x 92" strap is secured with quick hook and loop fasteners. 2 safety straps per set.
Hand-Held Height Control: Alternative to foot control. Stores easily under top when not in use.
Locking Casters: Heavy duty, rubber wheel, easy-roll casters.
Chrome Safety Rail: 3 height position with plunger height adjustment.
2-Hook IV Pole and Mounting Bracket: Chrome pole with height adjustment. Removable bracket mounts to either side of head end.
DOWNLOAD:
Instruction Manual
